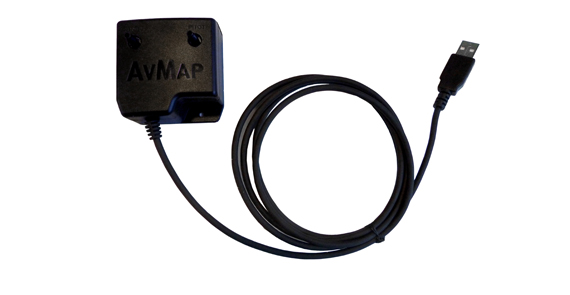

■ The AvMap A2 ADAHRS is a compact fixed-install module providing attitude, heading, altitude and airspeed data to the system. It connects to the docking station via USB and provides information that are displayed on the EKP V LCD.

■  The module contains solid-state gyros, accelerometers, magnetic field sensors and air data sensors;  it should be connected to the aircraft pitot-static system, in order to take full advantage of its functionality.

■  Designed for light-sport, ultra light and experimental aircrafts, the small and light weighted module can be installed in any orientation (thereafter a proper calibration procedure must be performed).


 EFIS features

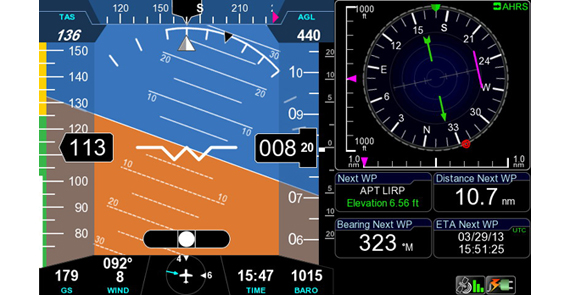

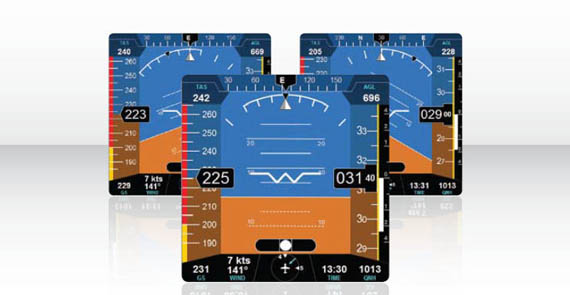

When the A2 ADAHRS module is connected to EKP V, the Primary Flight Display mode becomes available on the  7” display.

■ Airspeed and Altitude from pitot-static system.
■ Attitude (roll, pitch and heading angle), side slip and heading information.
■ Integration of TAWS into the PFD with AGL Altitude indication.
■ Wind indicator with wind components.
■ Clear HSI display linked with EKP V flight planning function.
■ Customizable data fields.
■ PFD settings: Altimeter reference, Heading reference, Aircraft specific V-speed reference value (aircraft profiles).



AvMap A2 ADAHRS specifications

■ 3-axis gyros, accelerometers and magnetometers
■ Acceleration range (3 axis) +/- 8 g
■ Rotation range +/- 1600 deg/s
■ Air data sensors: range 10 to 250 kts, -1000 to 40000 ft
■ Advanced data fusion capability
■ Guided Calibration Procedure
■ USB Interface
■ UAV Navigation® technology inside



Customer Support


User Manuals



AvMap products are guaranteed for 2 years after the purchase date.
