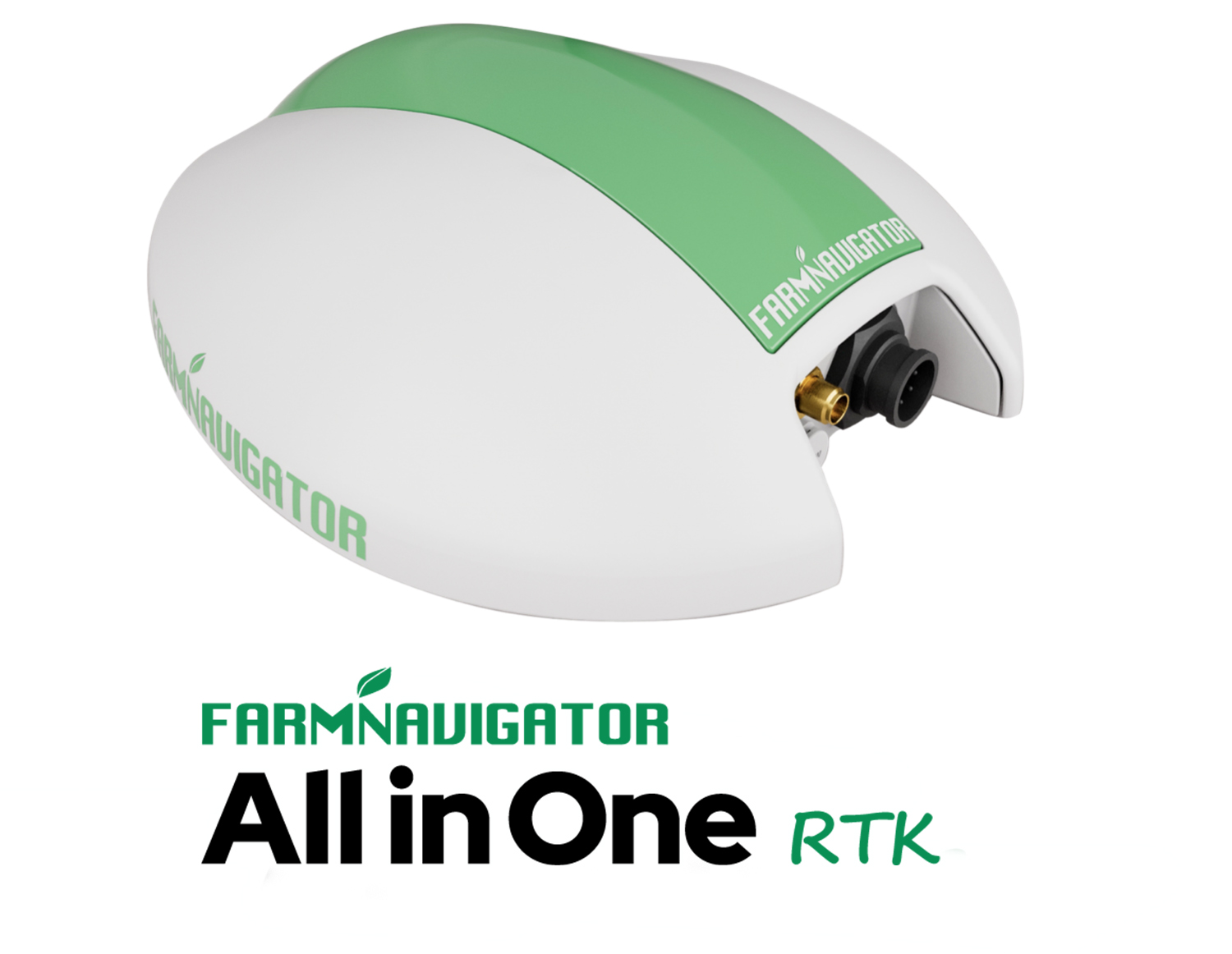

All in One RTK


NEW All-in-one powerful smart antenna:
RTK corrections, 4G connectivity, telematics!


FARMNAVIGATOR All in One RTK combines the most up-to-date GNSS technology, with RTK corrections via internet for enhanced accuracy, and telematic services to monitor vehicleʼs localization and telemetry on myfamnavigator.com cloud.





*Available from Spring 2024

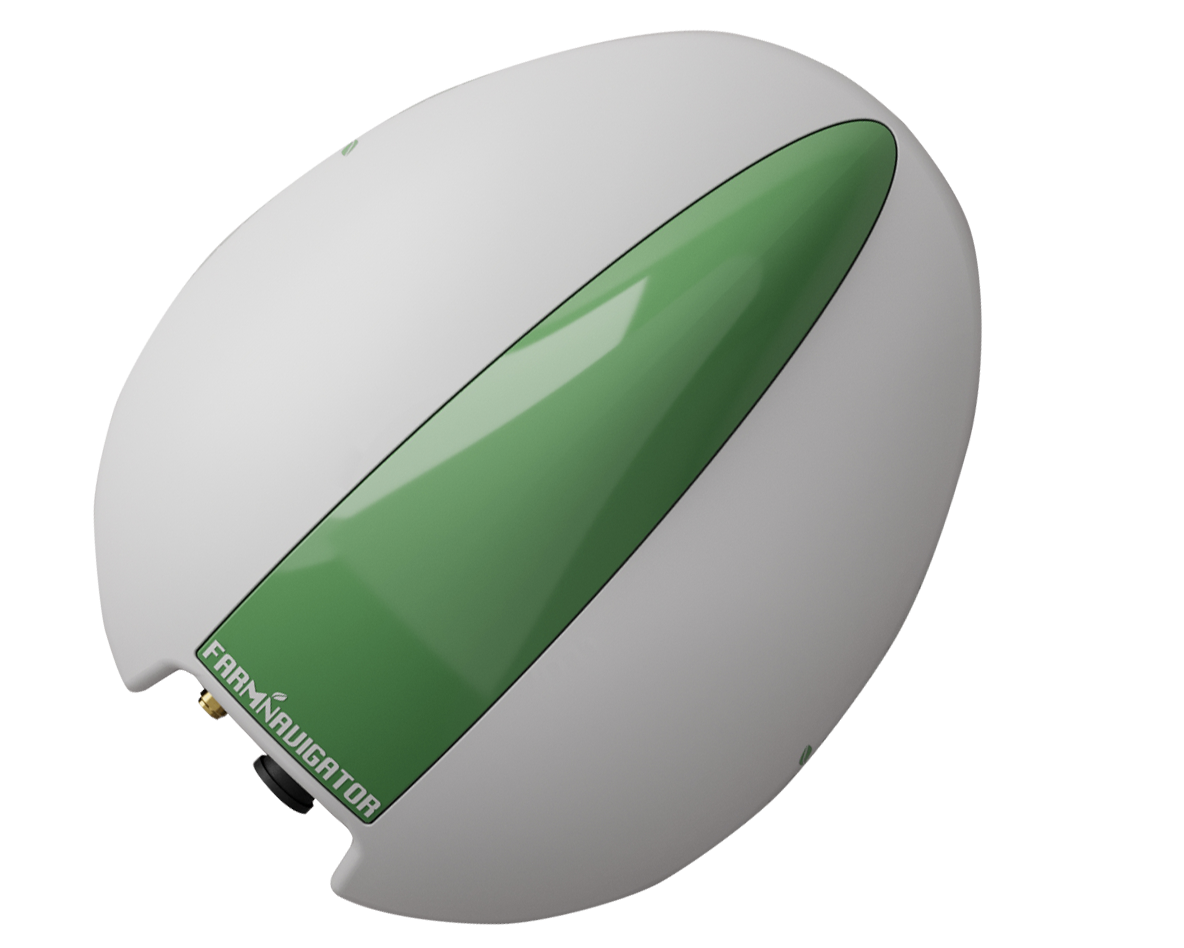

New Design

New rugged housing for longtime outdoor use



WATERPROOF

The IP67 rating housing ensures good waterproof, dustproof, high & low temperature protection, and anti-vibration protection.

AERODYNAMIC DESIGN

The aerodynamic design allows the antenna to resist impacts with branches without moving and without being damaged.


FLEXIBLE INSTALLATION OPTIONS

Both magnetic supporting and screw mounting are supported.

Main Features



centimeter level accuracy


RTK Centrimeter-level Accuracy

Smoother steering

High-precision multi-frequency GNSS receiver for GPS, GLONASS, GALILEO and BEIDOU satellite systems. Thanks to the RTK corrections the positioning reaches centimeter-level accuracy: +/- 2 cm.


Connectivity & IoT


Connectivity & IoT

Designed for Smart Farming

All in One RTK includes a powerful inbuilt platform with 4G modem, SIM, NTRIP client and IoT functionality. Ready to connect to myfarmnavigator.com cloud.

Terrain compensation


Terrain compensation

High-precision positioning anywhere

Precision tracking on uneven ground and slopes thanks to the built-in inertial platform and the Terrain Compensation algorithm that correct errors caused by the roll and pitch of the vehicle.

Easy to integrate


Easy to integrate

Universal compatibility

Compatible with agriculture terminals using serial communication and NMEA0183 messaging. You can set it up with any device, thanks to the configuration software.

Ideal for

High precision tasks


High-performance semi-autonomous or autonomous applications that need centimeter level accuracy, even in highly variable terrain:


Auto-Steering

 • Seeding

Plowing

Strip-till

Planting

Services


Connected

4G Connectivity
all over Europe


All in One RTK includes 1 Year / 1000 hours of connectivity.
SIM card embedded.

NTRIP ready

RTK corrections
made easy


The embedded and pre-configured NTRIP Client receives RTK connections via internet from NTRIP services worldwide. Simply insert your NTRIP account once and you are ready to go!

1 Year of telematic services included!

Telemetry and tilt sensor data



All in One RTK  is the connected receiver designed for Smart Farming services.
The service is included for 1 Year, and can be extend to 3 or 5 years. Register All in One RTK on myfarmnavigator.com in a few simple steps, and start monitoring your vehicles on the cloud!

Technical Specifications

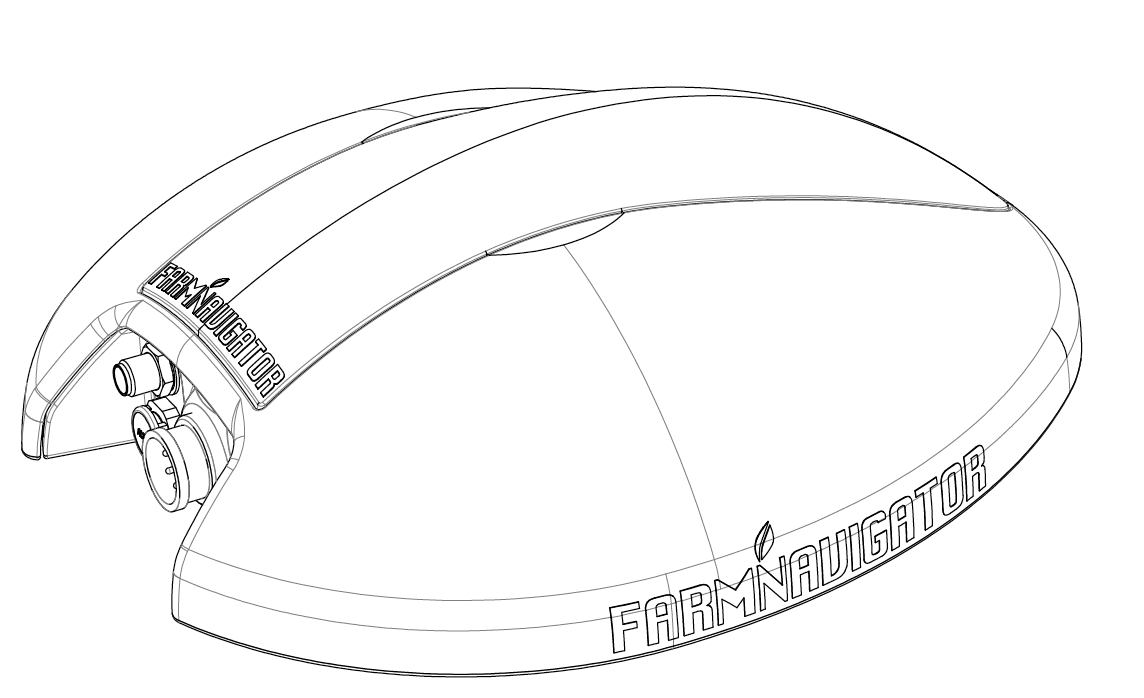

Allin One 4G specifications

PHYSICAL AND ELECTRICAL

Dimensions: 184 x 152 x 55 mm

Weight: 240 g without power cable

Supply voltage: 10-35 Vdc

Power consumption: 125 mA max @12V DC (~ 1.5 W)

Power cable: 4 m Conxall to DB9

Triaxial accelerometer + gyro

2x Led indicators

Built-in magnets for easy mounting

ENVIRONMENTAL

Operating Temperature: -20 °C / +60 °C

Storage Temperature: -30 °C / +80 °C

Waterproof: IP67



all in one 4g specs 2

COMMUNICATION

GNSS Receiver: GPS + GLONASS + GALILEO + BEIDOU + SBAS

GNSS rate: configurable (up to 10Hz)

GNSS frequency band: L1, L2

RS232 baud rate: configurable (115200 default)

RS232 protocol: NMEA0183 (GGA, GLL, RMC, GSA, GSV, VTG, ZDA, GST default)

PERFORMANCE

RTK precision +/-0.02 m

CONNECTIVITY

Embedded 4G cellular modem and SIM on chip

Automatic FOTA Updates

Automatic connection to IoT server

Embedded NTRIP Client
