4D BLACKBOX CAN
Professionally installed, automotive-standard blackbox
The All-in-one blackbox with CANbus for advanced car diagnostics
The 4D BLACKBOX CAN is a professionally installed blackbox, designed as per Automotive standards, powered by the vehicle 12V (main battery), that connects directly to the Car's CANbus.
With embedded accelerometer, GPS and 2G module, 4D BLACKBOX does not need a smartphone to operate. It auto-calibrates and it connects to a remote server via 2G network providing advanced Insurance services. A SIM card and a data connectivity plan are required.
4D BLACKBOX is a modular product, that can be customized with a number of options to best adapt to Insurance or Car makers, fuel vehicles or electric vehicles, and different price targets.
 |
 |
 |
 |
|
|
 |
Other options: |
 |
TELEMATICS SERVICES
PIN 4 Telematics Box
Insurance services
 |
Crash
|
 |
Trip log |
 |
Driving
|
 |
Crash Detection
|
 |
Movement
|
 |
Immobilizer system |
maintenace services
Maintenance services
 |
Maintenance
|
 |
Battery guard |
Fleet management
Fleet Management
 |
|
VEHICLE DIAGNOSTIC & MAINTENANCE ALERTS
Prevent risks and ensure safety of vehicles and drivers
The 4D BLACKBOX CAN monitors real-time status and behaviour of vehicle and driver with no need of external OBDII dongles, being directly connected to the vehicle CANbus. This makes it possible to send maintenance alerts, improving significantly vehicles and drivers safety.
DRIVING BEHAVIOUR
Improve driver behaviour evaluation
4D BLACKBOX CAN collects vehicle trip data and thanks to the 4D TELEMATICS ALGORITHMS, evaluates driving behaviour with extreme precision. A better analysis of driving styles allows developing systems to promote a responsible driving.
Let’s develop together your next Telematic Service

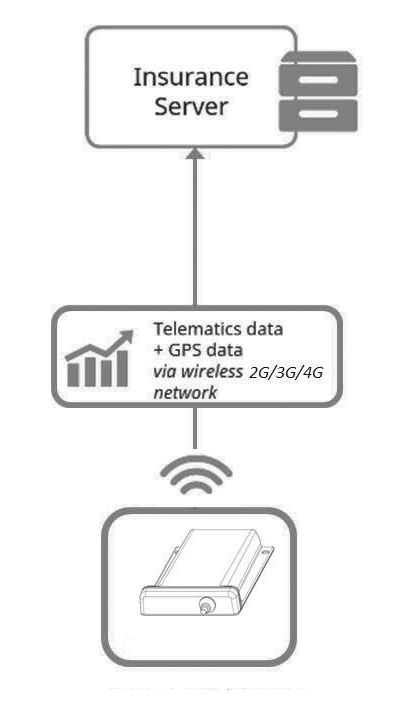

HOW DOES IT WORK?
The AVMAP TELEMATICS ecosystem
The 4D BLACKBOX collects data through the embedded GPS, triaxial accelerometer and gyro, connection to car ingnition, and sends them to a remote server via 2G network using the data format and communication protocol of the AVMAP TELEMATICS ecosystem.
4D TELEMATICS ALGORITHMS
Our secret ingredient
Our proprietary 4D Telematics Algorithms come from three decades of experience in Avionics, this is why they are the only ones to have a 4-dimensional approach considering roll, yaw, pitch and time.
Their outstanstanding performance, certified by multiple tests by Hochschule Trier University, makes an enormous difference in precision in terms of:
-
Calibration
-
Crash Detection
-
Driving Behaviour Analysis
4D CALIBRATION
Quick and continous
AVMAP TELEMATICS devices are calibrated after just 5 minutes of standard driving while other systems require hours of driving before being sufficiently calibrated. But there is more...
4D TELEMATICS ALGORITHMS are always active throughout the entire life of the device, which means continuous correction and more precision.
4D CRASH DETECTION
We see what others don’t. Starting at 0.6g!
AVMAP 4DTELEMATICS ALGORITHMS detect events with peaks starting from 0.6g, while others only see what happens over 2g, leaving out minor impacts that can cause damages to the vehicle and are critical for insurance and fleet management services.
INSTALLATION OPTIONS
In any position. fast. easy.
While most of the other systems require specific installation orientation, with limitation on where to install the device, AVMAP TELEMATICS devices can be installed in any position and orientation. Even if professionally installed, this means it is easier to adopt them for fleets, and different kind of vehicles as they can be positioned in the hood box, console box or glove box.
MAIN FEATURES
| 4D TELEMATICS ALGORITHMS |
| Continuous self-calibration feature |
| Trip log recording |
| Crash detection through sensor data analysis at 500hz |
| Last crash accelerations logging (15 sec max @ 100hz: 5 pre-crash and up to 10 post-crash) |
| SMS back-up communication in case of data connection failure |
| FOTA |
| Connectivity to car maker / insurance server according to car maker / insurance telematics protocol |
| 4WHEELS firmware |
| Options: Battery Optimization for Electric Vehicles |
HARDWARE
| 2G modem |
| Embedded GPS |
| Triaxial Accelerometer + Gyro ACC: 500 Hz, min 0,125g - max 16g |
| BLE master for connection to smartphone service APPs |
| CANbus |
| Internal Memory (FRAM) |
| Real Time Clock (RTC) |
| Power supply: 12V battery |
| Back up Battery |
| 3rd wire to Ignition Sensor |
| Operating Temperature: (without battery): -20 ⁰C / +65 ⁰C |
| Storage Temperature: -40 ⁰C / +85 ⁰C |
| Certifications: CE, RoHS |
