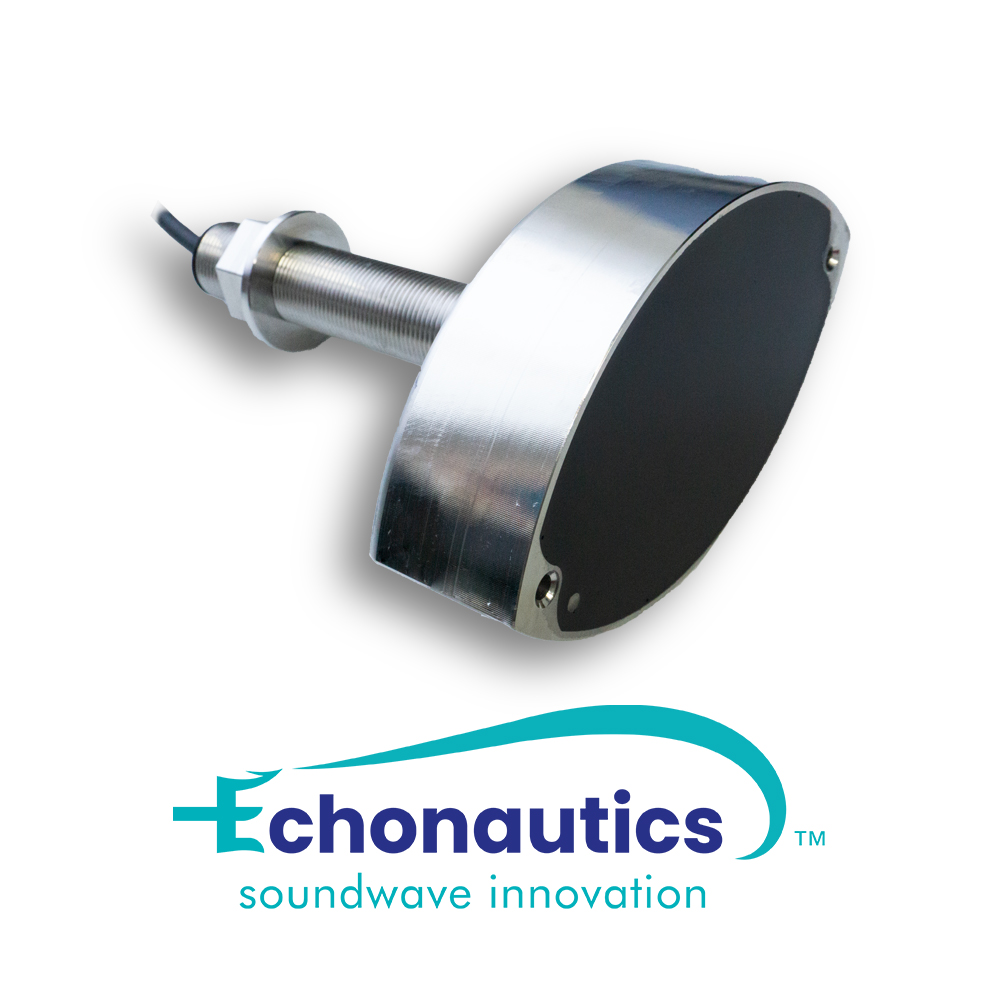

Echonautics ST180D1KW
Dual Frequency Stainless Steel Transducer
CW | Dual Frequency 50-200 KHZ | 1KW
ORDER CODE: UX0TDM00EN
Transducer Overview
Echonautics ST180D1KW is a traditional CW (Continuous Wave) thru-hull transducer crafted from quality stainless steel for superior corrosion resistance and durability in the harsh marine environment.
Providing 1kW output power and dual frequency operation (50/200kHz), this is an ideal solution for a wide range of recreational and commercial fishing vessels, including those with steel or aluminum hulls.
Performance is optimized by using with Echonautics’ optional fairing block, especially when metering suspended gamefish or tracking bottom at speed. Compatible with major sonar brands, this is a high-performance sonar solution for many vessels and a wide array of fishing situations.
Applications
-
Commercial fishing vessels
-
Steel or aluminum hulls
Key Features
ST180D1KWCW key Features
Echonautics ST180D1KW Transducer Key Features
-
Durable marine-grade construction
-
Stable performance across depth ranges
-
High speed fairing block: Performance is optimized by using the Echonautics’ optional high speed fairing block, especially when metering suspended gamefish or tracking bottom at speed.
-
Marine grade 316 Stainless Steel housing :
- Surface Passivation treatment
- Resistant to the corrosive effects of NaCIorsaltin seawater.
Technical Specifications

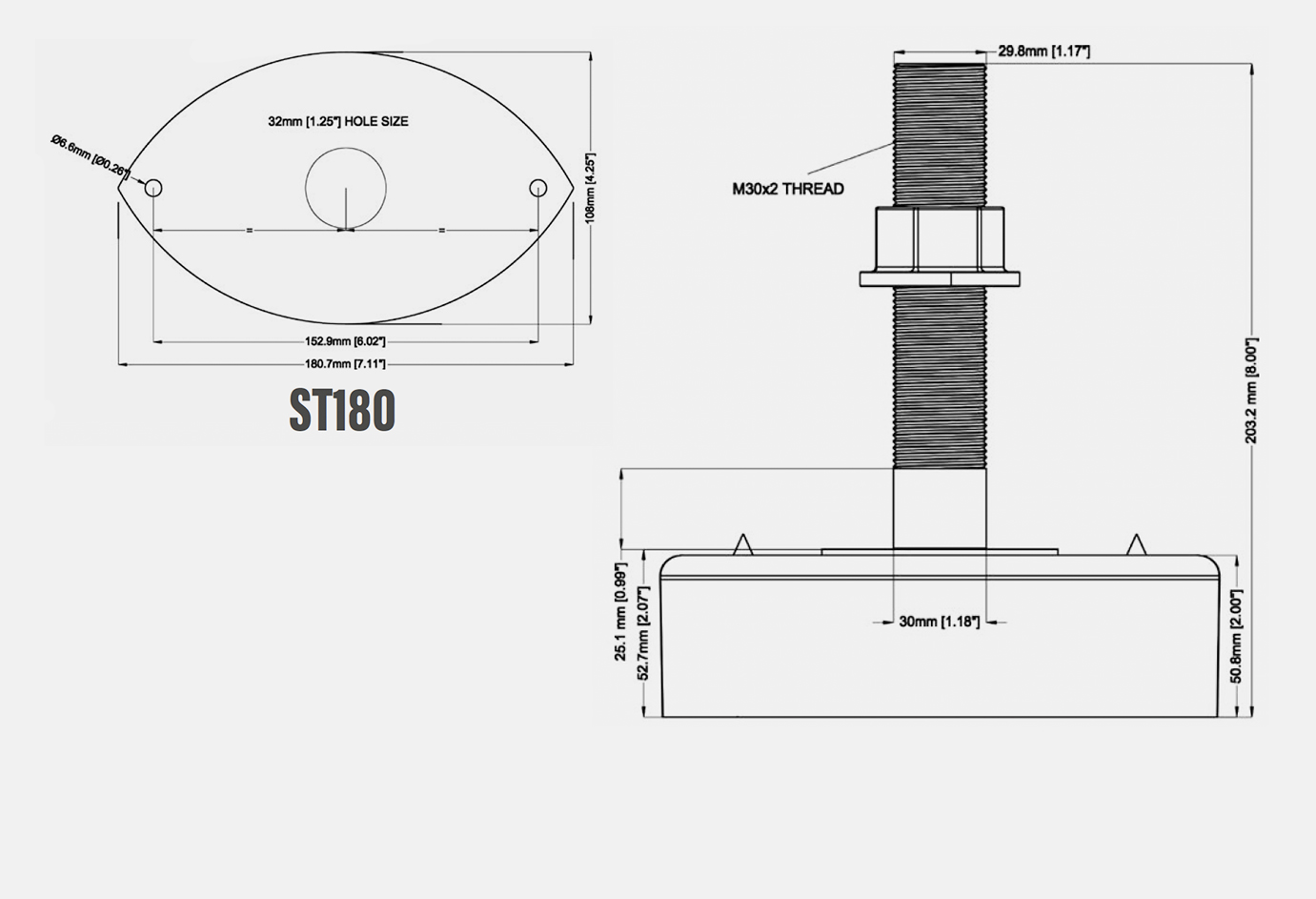

ST180D1KW tech specs
| Sonar type | CW |
| Frequency | 50 -200 kHz |
| Power | 1KW |
| Mounting | Thru Hull, stem (fairing block is optional) |
| Material | Stainless steel |
| Deadrise | Max deadrise 20° with fairing block |

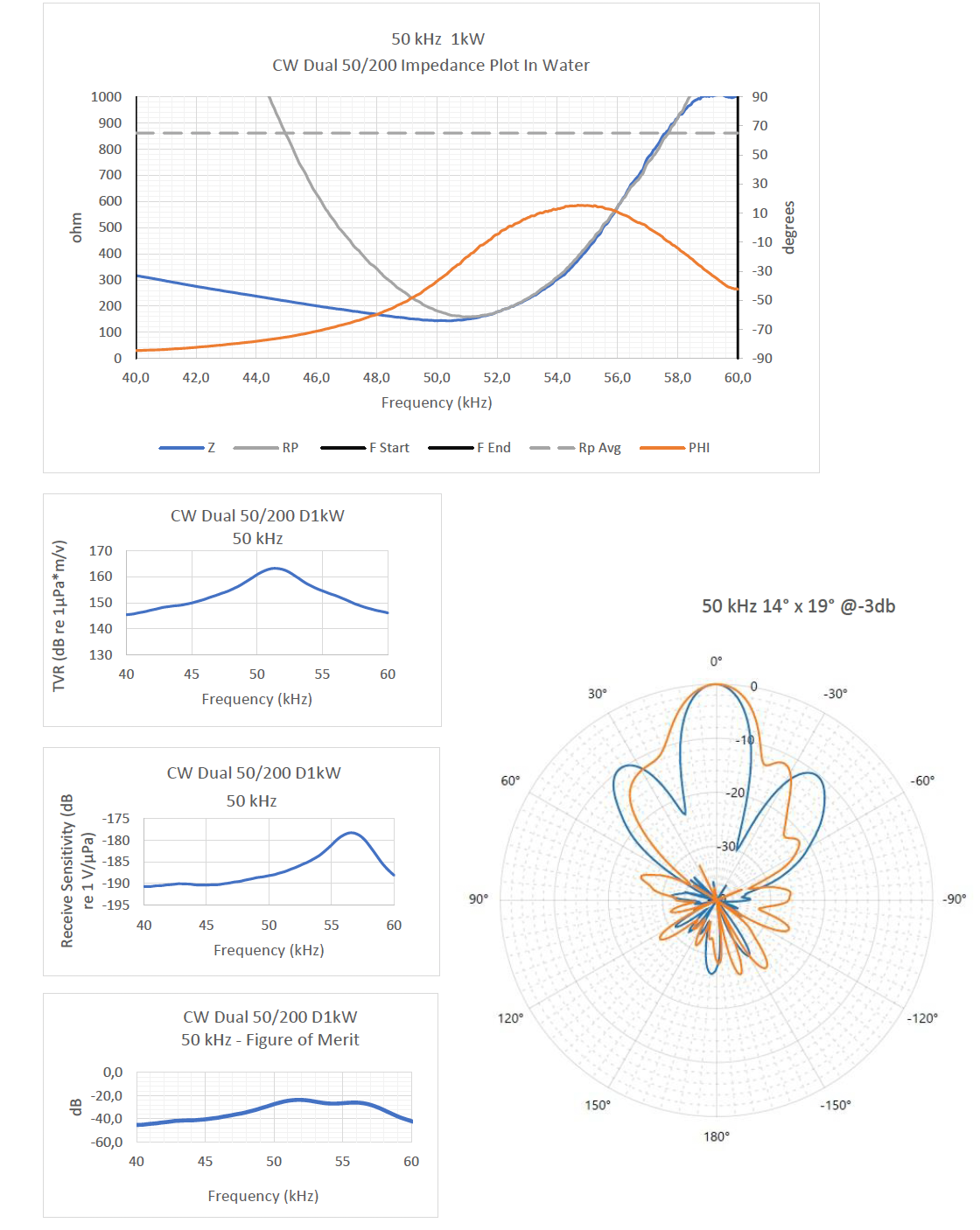

| Beamwidth | 50 kHz 14° x 19° @ -3db 200 kHz 3° x 5° @ -3db |
| Max Depth | Max Depth Max @50 kHz = 670 m (2,200 ft) Max @200 kHz = 305 m (1,000 ft) |
| Temperature sensor | NTC |
| Acoustic window | Urethane |
| Weight | 3600 g (126 oz) |
| Hole diameter | 32 mm (1.25”) |
| Cable length | 8 m (26 ft) |
Downloads
ST180D1KW manuals
