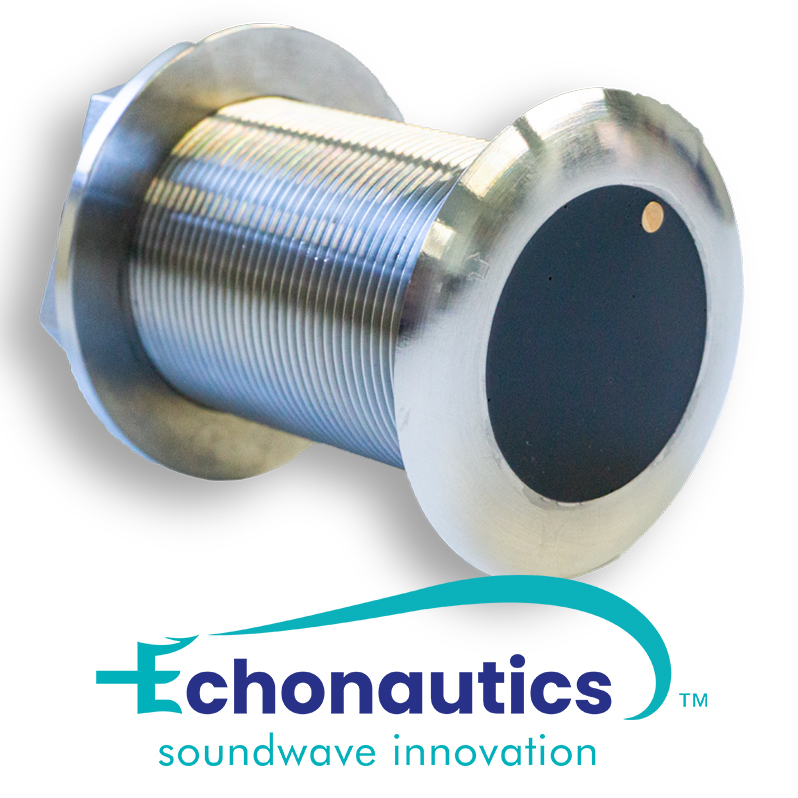

Echonautics ST70 series
Angled Element Low Profile Stainless Steel Transducers
CHIRP | Medium or High Frequency | 600W
CW | Dual Frequency 50/200kHz | 600W
Transducer Overview
This angled element series is offered in traditional CW (Continuous Wave) 600W dual frequency and 600W Medium/High Frequency CHIRP versions, all featuring a corrosion resistant and durable stainless-steel housing.
The low profile thru-hull design minimizes drag below the hull surface while delivering superior target detail, structure resolution and bottom tracking performance - even when the boat is moving at speed. This makes it an ideal choice for a variety of high-performance fishing boats and all major sonar brands.
All ST70 models are offered in versions with 0°, 12°, and 18° angled elements to accommodate various hull deadrise angles up to 24° with vertical beam orientation for superior performance. This includes three tilt options each for Medium Frequency CHIRP (80-130kHz), and High Frequency CHIRP (130-210kHz).
Applications
-
Recreational fishing
-
High-performance fishing boats
-
Steel or aluminum hulls
Key Features
Echonautics ST70 series Key Features
Echonautics ST70 series Key Features
-
Wide-band CHIRP support
-
Optimized acoustic geometry
-
Durable marine-grade construction
-
Stable performance across depth ranges
-
Three tilt options: Available in 0°, 12° and 18° Angled Element to accommodate various hull deadrise angles up to 24° while delivering a focused vertical beam on targets below.
-
Low profile thru-hull design minimizes drag below the hull surface and provides superior fish finding and bottom tracking performance at high speeds
-
Marine grade 316 Stainless Steel housing :
- Surface Passivation treatment
- Resistant to the corrosive effects of NaCIorsaltin seawater.
Technical Specifications
ST70MA600 tech specs
| Model | ST70MA600 |
| Sonar type | CHIRP ready |
| Frequency | Medium 80 - 130 kHz |
| Power | 600W |
| Mounting | Thru Hull, low profile |
| Material | Stainless Steel |
| Deadrise | 18° tilt version: for 16° to 24° hull deadrise 12° tilt version: for 8° to 15° hull deadrise 0° tilt version: for 0° to 7° hull deadrise |
| Beamwidth | 24° to 17° @ 3db |
| Max Depth | Max 274 m (900 ft) |
| Temperature sensor | NTC |
| Acoustic window | Urethane |
| Weight | 1540 g (54 oz) |

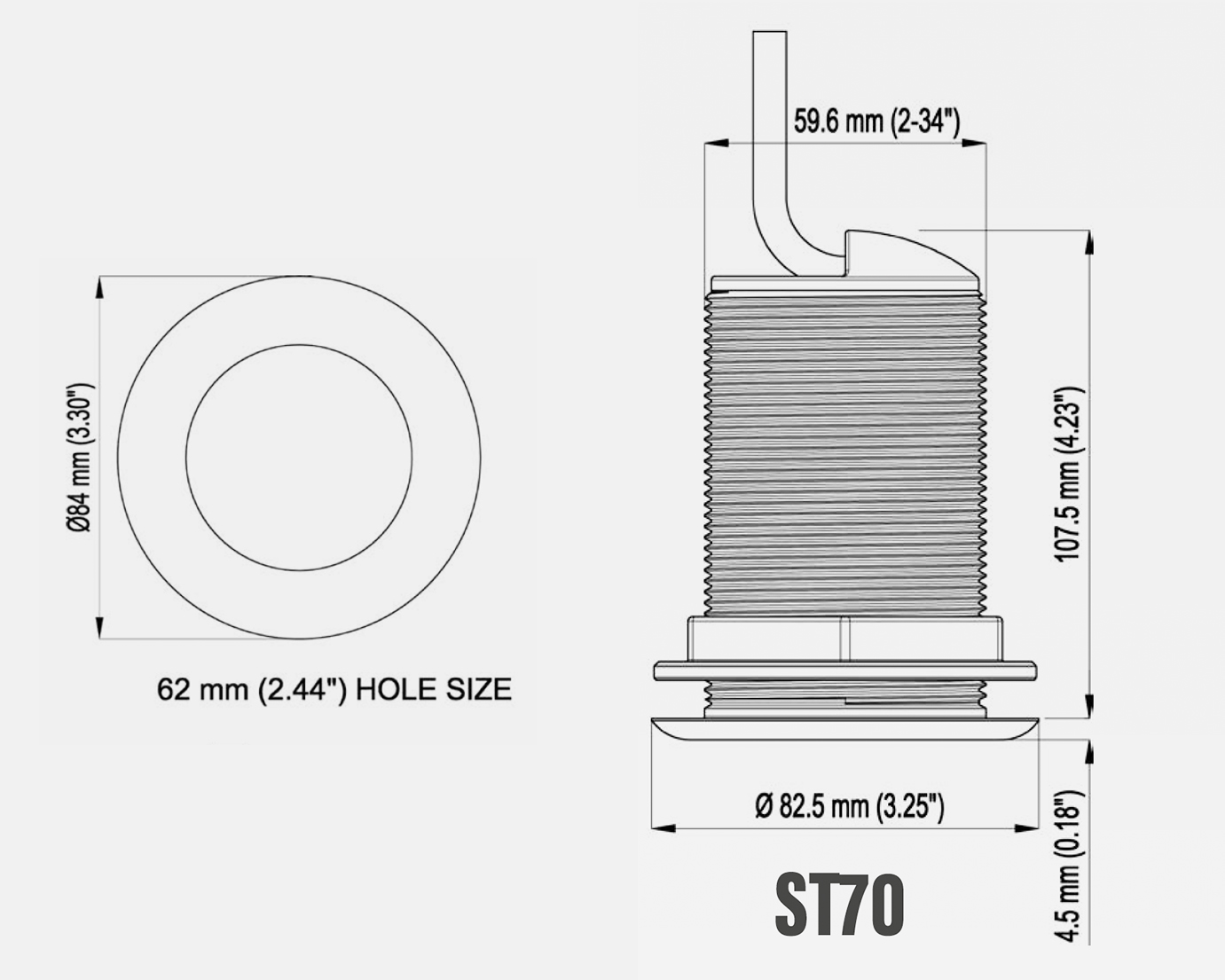

| Hole diameter | 62 mm (2.44”) |
| Cable length | 8 m (26 ft) |
ST70H600 tech specs
| Model | ST70H600 |
| Sonar type | CHIRP ready |
| Frequency | High 130 - 210 kHz |
| Power | 600W |
| Mounting | Thru Hull, low profile |
| Material | Stainless Steel |
| Deadrise | 18° tilt version: for 16° to 24° hull deadrise 12° tilt version: for 8° to 15° hull deadrise 0° tilt version: for 0° to 7° hull deadrise |
| Beamwidth | 17° to 11° @ 3db |
| Max Depth | Max 213 m (700 ft) |
| Temperature sensor | NTC |
| Acoustic window | Urethane |
| Weight | 1540 g (54 oz) |
| Hole diameter | 62 mm (2.44”) |
| Cable length | 8 m (26 ft) |
ST70D600 tech specs
| Model | ST70D600 |
| Sonar type | CW |
| Frequency | 50 -200 kHz |
| Power | 600W |
| Mounting | Thru Hull, low profile |
| Material | Stainless Steel |
| Deadrise | 18° tilt version: for 16° to 24° hull deadrise 12° tilt version: for 8° to 15° hull deadrise 0° tilt version: for 0° to 7° hull deadrise |
| Beamwidth | 42° / 11° @ -3db |
| Max Depth | Max @50 kHz = 353 m (1,200 ft) Max @200 kHz = 206 m (700 ft) |
| Temperature sensor | NTC |
| Acoustic window | Urethane |
| Weight | 1540 g (54 oz) |
| Hole diameter | 62 mm (2.44”) |
| Cable length | 8 m (26 ft) |
Versions
ST70 series comparative table
|
|
ST70MA600Medium Frequency CHIRP 600W |
ST70H600
|
ST70D600Dual Frequency CW 600W |
CHIRP |
✓ |
✓ |
x |
CW |
x |
x |
✓ |
300W |
x |
x |
x |
600W |
✓ |
✓ |
✓ |
1KW |
x |
x |
x |
LOW |
x |
x |
x |
MEDIUM |
✓ |
x |
x |
HIGH |
x |
✓ |
x |
DUAL |
x |
x |
✓ |
0°, 12°, 18° |
✓ |
✓ |
✓ |
BRONZE |
x |
x |
x |
STEEL |
✓ |
✓ |
✓ |
THRU HULL |
✓ |
✓ |
✓ |
STEM |
x |
x |
x |
Downloads
ST70 series downloads
 |
Product Datasheet > ST70H600 > ST70D600 |
|
Installation Guide ST70 |
|
Wiring Scheme ST70 |
|
Integration Guide |
